Split an A4 PDF file into two A5 PDF files

This week I scanned a couple of receipts in order to submit them to a client with an expenses claim. The two receipts were physically small enough to both fit on an A4 page, so I lay them both on the bed of a scanner and produced a PDF file with the two receipts on one A4 page. The resulting scan looked rather like the sketch in Figure 1. However, a couple of days later I remembered that the client wanted copies of receipts to be submitted individually, but the office scanner had stopped working and so I needed to split the original PDF file into two PDF files containing images rather like the sketches in Figures 2 and 3.

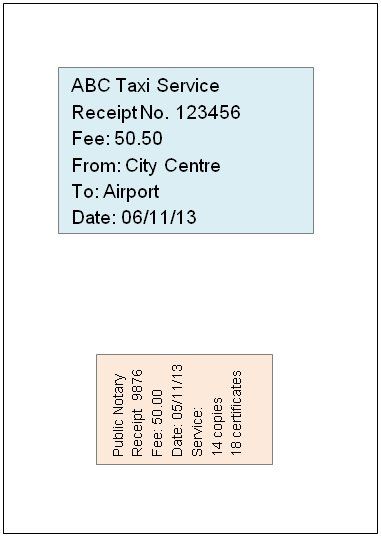

Figure 1 - original A4 image

Figure 1 - original A4 image

Figure 2 - A5 bottom half of original A4 image

Figure 2 - A5 bottom half of original A4 image

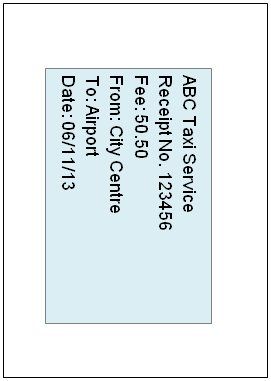

Figure 3 - A5 top half of original A4 image

Figure 3 - A5 top half of original A4 image

I was surprised to find little information on the Web about how to do such a thing. I did come across three applications that looked like they probably could do the job: jPdf Tweak, BRISS and krop. jPdf Tweak is in the Portage main tree (app-text/jpdftweak). BRISS isn’t. The krop Web page does have a link to an ebuild which could be downloaded and installed via a local overlay. I did have a brief play with jPdf Tweak and it looks powerful, but I did not find it particularly intuitive and I would need to study the manual in detail. Anyway, I thought I would try a command line approach for the fun of it.

Searching the Web I came across a site with a Perl script that looked promising: Split (crop) double page PDFs in two posted by someone called iblis (to whom I’m grateful). It uses a Perl module PDF:API2 which does exist in the Portage main tree (dev-perl/PDF-API2) and which I already had installed. I modified the last couple of lines of the script very slightly, so it now looks like this:

#!/usr/bin/env perl
use strict; use warnings;
use PDF::API2;

my $filename = shift || 'test.pdf';
my $oldpdf = PDF::API2->open($filename);
my $newpdf = PDF::API2->new;

for my $page_nb (1..$oldpdf->pages) {
my ($page, @cropdata);

$page = $newpdf->importpage($oldpdf, $page_nb);
@cropdata = $page->get_mediabox;
$cropdata[2] /= 2;
$page->cropbox(@cropdata);
$page->trimbox(@cropdata);
$page->mediabox(@cropdata);

$page = $newpdf->importpage($oldpdf, $page_nb);
@cropdata = $page->get_mediabox;
$cropdata[0] = $cropdata[2] / 2;
$page->cropbox(@cropdata);
$page->trimbox(@cropdata);
$page->mediabox(@cropdata);
}

(my $newfilename = $filename) =~ s/(.*)\.(\w+)$/$1.split.$2/;
$newpdf->saveas($newfilename);

__END__

I saved it with the file name split_pdf_A4_to_A5.pl and made it executable:

$ chmod +x split_pdf_A4_to_A5.pl

Then I used the following procedure to split the original PDF file:

1. I used the excellent command line utility pdftk (the package app-text/pdftk in Gentoo), which I had already installed, to rotate the A4 page clockwise and save it in a file named rotated.pdf:

$ pdftk original.pdf rotate 1-1right output rotated.pdf

Now the A4 page looked similar to the sketch in Figure 4.

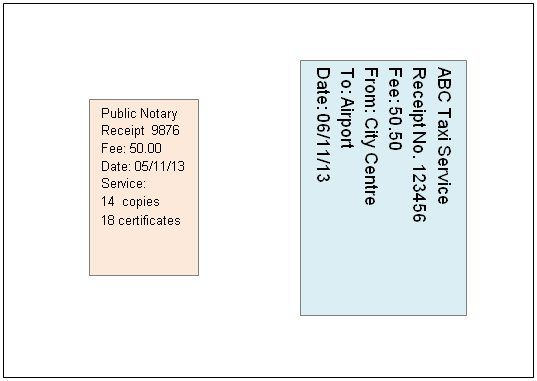

Figure 4 - original A4 image, rotated clockwise by 90 degrees

Figure 4 - original A4 image, rotated clockwise by 90 degrees

2. I used the Perl script to split the A4 page into two A5 pages within one PDF file:

$ ./split_pdf_A4_to_A5.pl rotated.pdf

The above command created a file rotated.split.pdf containing two A5 pages.

3. Finally, I split the two-page PDF file into two separate single-page files:

$ pdftk rotated.split.pdf burst

which left me with two A5 PDF files named page_0001.pdf and page_0002.pdf similar to the sketches in Figures 2 and 3 above.

Mission accomplished. :-)
